| 品牌：Dixsen | 型号：ABO | 应用范围：测量 |
| 种类：电流互感器 | 绕线形式：单层密绕式 | 封装形式：环氧树脂电感 |
| 导磁体性质：铁芯 | 磁芯形状：方形 | 工作频率：50~60HZ |
| 安装方式：母线式 | 骨架材料：胶木 | 品质因数Q：填写需要 |
| 电感量：填写需要 | 允许误差：填写需要 | 感抗XL：填写需要Ω |
| 额定电流：填写需要mA | 分布电容：填写需要F | 标称电压：AC720V |
浙江迪克森电器有限公司
更多产品
http://cndixsen.1688.caom
主要技术参数:
频 率: 50/60Hz
额定测试电压：3kv AC.(1 min)
短时热电流: Ith=60×In
动稳定电流：2.5Ith
电压: 0.72kV AC
一次电流: ***-5000A
二次电流: ***, 1A，0.***,0.2***,0.1A
精 度: 0.5, 0.5S, 0.2, 0.2S
额定安全系数: FS<5<>
Specifications
1.CE,ROHSstandard
2.***,***14001
3.Professorytransformermanufacturer
4,ExporttoEurope,Asia,America,Africa
InstrumentCurrentTransformersABO-125
1.Description
Anewrange(8frames)perfectdesignedplasticcasecurrenttransformer,advancedsnaponbody,highaccuracy(uptoClass0.2S),humanizationtransparentcoverandleadsealholedesignmakestheCTveryeasytoindentifyafterlongtermuseandperfectanti-stealingelectricity.
2.Feature
Builtinhingedterminalcover
Builtintransparentcoverfornameplate
Widerangeaccuracy(3,1,0.5,0.5S,0.2,0.2S)enablesmeettheworldwiderequirement.
Primarycurrentfrom***to5000A.
3.Specification
RatedFrequency50/60Hz
Ratedtestvoltage3kVAC.(1min)
Ratedshort-timethermalcurrent(Ith)60In
Rateddynamiccurrent,(Idyn)2.5Ith
Ratedvoltage,(Um)0.72KvAC.
Continuousoverload,(Id)1.2In
Operatingtemperature-10°C~50°C
Housingself-extinguishingclassVO
SafetyfactorFS5
Secondarycurrent***,1A,0.***,0.2***,0.1A
ABOseriesphotos:

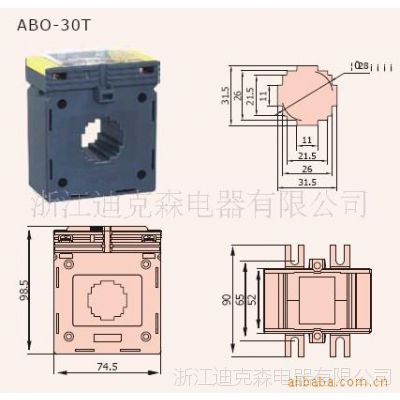

ABO-B,ABO-30T,ABO-30,ABO-30C,ABO-40,ABO-60,ABO-85,ABO-100,ABO-125
