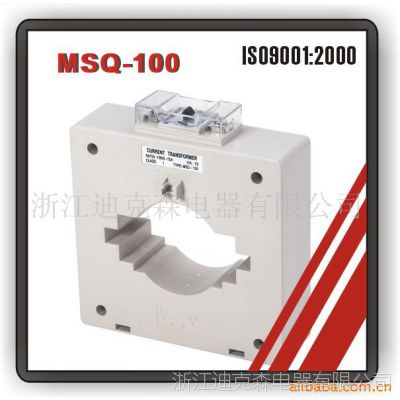

MSQ-100

主要技术参数:

频    率: 50/60Hz

额定测试电压：3kv AC.(1 min)

短时热电流: Ith=60×In

动稳定电流：2.5Ith

电压: 0.72kV AC

一次电流: ***-6000A

二次电流: ***, 1A

精    度: 0.5, 1.0

额定安全系数: FS<5

MSQ互感器型号规格：MSQ-B 5/***，MSQ-B 10/***，MSQ-B 15/***，MSQ-B 20/***，MSQ-B 25/***，MSQ-B 30/***，MSQ-B 50/***，MSQ-B 60/***，MSQ-B 100/***，MSQ-B 150/***，MSQ-B 200/***，MSQ-B 250/***，MSQ-B 300/***，MSQ-30 30/***，MSQ-30 40/***，MSQ-30 50/***，MSQ-30 60/***，MSQ-30 75/***，MSQ-30 80/***，MSQ-30 100/***，MSQ-30 150/***，MSQ-30 200/***，MSQ-30 250/***，MSQ-30 300/***，MSQ-30T 100/***，MSQ-30T 125/***，MSQ-30T 150/***，MSQ-30T 160/***，MSQ-30T 200/***，MSQ-30T 250/***，MSQ-30T-300/***，MSQ-40 100/***，MSQ-40 150/***，MSQ-40 200/***，MSQ-40 250/***，MSQ-40 300/***，MSQ-40 400/***，MSQ-40 500/***，MSQ-60 250/***，MSQ-60 300/***，MSQ-60 400/***，MSQ-60 500/***，MSQ-60 600/***，MSQ-60 750/***，MSQ-60 800/***，MSQ-60 1000/***，MSQ-60 1200/***，MSQ-60 1500/***，MSQ-60 1600/***，MSQ-85 750/***，MSQ-85 800/***，MSQ-85 1000/***，MSQ-85 1200/***，MSQ-85 1500/***，MSQ-85 1600/***，MSQ-85 2000/***，MSQ-100 800/***，MSQ-100 1000/***，MSQ-100 1200/***，MSQ-100 1250/***，MSQ-100 1500/***，MSQ-100 1600/***，MSQ-100 2000/***，MSQ-100 2500/***，MSQ-100 3000/***，MSQ-125 1000/***， MSQ-125 1200/***， MSQ-125 1500/***， MSQ-125 1600/***， MSQ-125 2000/***， MSQ-125 2500/***， MSQ-125 3000/***，MSQ-125 4000/***，MSQ-125 5000/***，MSQ-125 6000/***。
